How to Identify the Main Parts of a Tower Crane?

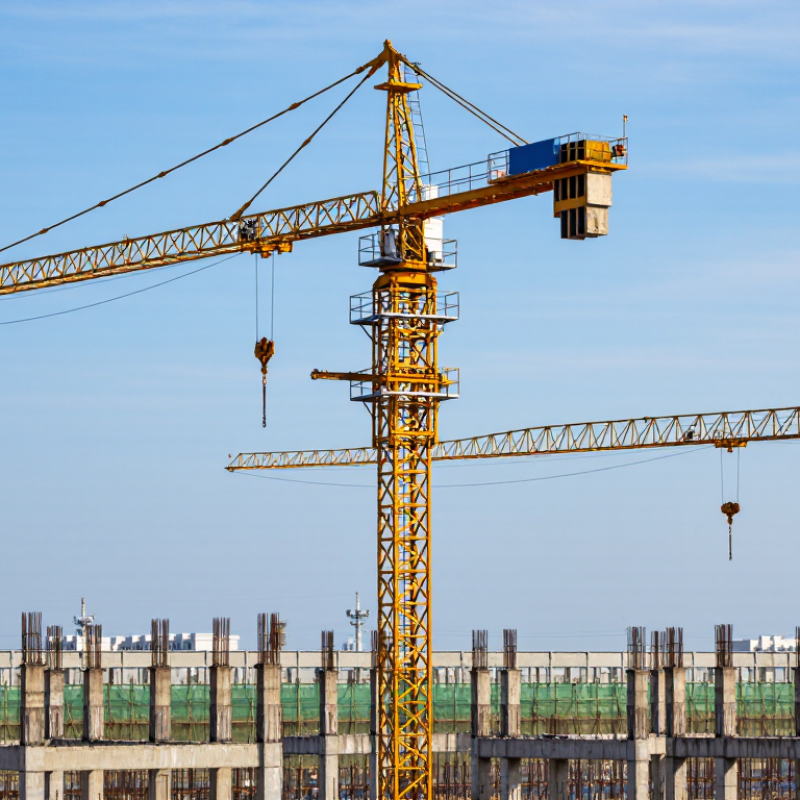

How to Identify the Main Parts of a Tower Crane? This question begins with more than a labeled diagram. It begins at ground level, where the foundation, anchor bolts, and base frame transfer enormous forces into concrete. Above them, the mast sections create the crane’s height. The slewing unit turns the upper structure, while the machinery deck carries the hoist, trolley, and electrical systems. The jib reaches across the site, and the counter-jib balances the suspended load. Each component has a different job, yet one damaged connection can affect the entire machine.

Industry guidance supports this systems-based approach. OSHA’s Cranes and Derricks in Construction standard emphasizes inspections, competent personnel, load charts, and manufacturer procedures. The International Labour Organization also identifies crane stability, lifting accessories, and operator competence as recurring safety priorities. Liebherr’s tower-crane technical documentation similarly separates structural, driving, control, and safety systems. These references show why identifying Parts Of Tower Crane is not merely an academic exercise. It supports safer inspection and clearer maintenance decisions.

“Every tower crane component must be understood as part of one load path,” says crane engineer Martin Keller, a specialist in tower-crane assembly and inspection. That sentence is useful, although it needs practical testing. A photograph may show the jib clearly, but it may hide fatigue around pins, welds, or bolts. I have seen basic diagrams make identification look effortless. Real sites are messier. Wind, poor lighting, paint layers, and temporary configurations can confuse even experienced workers. This guide therefore connects names with visible details, mechanical purpose, and inspection concerns. Some boundaries overlap. That is worth remembering.

How to Identify the Main Parts of a Tower Crane?
Table of Contents [Hide]
1 Crane Foundations and Base Supports
2 Mast Sections and Climbing Equipment
3 Slewing Unit, Machinery Deck, and Operator Cab
4 Jib, Trolley, and Load-Lifting Components
5 Counterjib, Counterweights, and Safety Systems

Crane Foundations and Base Supports

Crane Foundations and Base Supports

A tower crane begins with its foundation, not its mast. The foundation transfers vertical loads and wind forces into the ground. It commonly uses reinforced concrete, embedded anchor bolts, and carefully positioned steel supports. Soil conditions must be checked before construction begins. Weak or uneven soil can cause settlement, even when the concrete looks flawless. A qualified structural engineer should confirm the design, dimensions, reinforcement, and allowable loads.

The base support connects the foundation to the first mast section. Look for anchor frames, leveling plates, holding-down bolts, and grout beneath bearing surfaces. These parts keep the mast aligned and reduce movement during lifting. During inspections, measure vertical alignment and examine cracks, exposed reinforcement, loose bolts, and water accumulation. Drainage matters more than many crews expect. Standing water can slowly damage concrete and metal connections. One practical lesson is simple: a clean base does not always mean a sound base.

Mast Sections and Climbing Equipment

A tower crane’s mast is more than a vertical stack of steel. It is the load path carrying the slewing unit, jib, counter-jib, and suspended load into the foundation. Each mast section must align precisely with the next one. Check corner chords, diagonal bracing, flange faces, bolts, pins, and locking devices before assembly. Small damage can become a serious alignment problem at height.

Climbing equipment changes the crane’s height. A climbing frame surrounds the mast and supports the upper crane temporarily. Hydraulic cylinders then lift the upper structure by a controlled distance. Workers insert a new mast section into the opening and secure it before releasing the climbing system. The process looks slow. That is intentional. OSHA’s crane standard requires documented assembly and disassembly procedures, competent supervision, and proper component inspection. Do not rely on memory alone.

External ties connect the mast to the building as height increases. Their spacing depends on the crane design, wind exposure, and structural calculations. HSE reported 51 construction worker fatalities in Great Britain during 2023/24. The figure covers the wider industry, not tower cranes specifically, but it shows why climbing controls deserve attention. A practical inspection should record bolt condition, hydraulic leaks, pin engagement, mast plumbness, and weather limits. I have seen teams focus heavily on lifting capacity while overlooking climbing-frame clearance. That is a weak assumption. Recheck it. Wind can turn a routine climbing operation into an unstable event within minutes.

Slewing Unit, Machinery Deck, and Operator Cab

A tower crane becomes easier to understand when you locate its slewing unit, machinery deck, and operator cab. The slewing unit sits near the tower’s upper connection. It allows the crane to rotate around its vertical axis. Look for the large circular bearing and the drive motors around it. During an inspection, unusual noise or uneven movement may indicate wear, poor lubrication, or alignment problems. Do not judge its condition by appearance alone.

The machinery deck is the working platform above the slewing unit. It usually carries the hoist machinery, electrical equipment, and maintenance access points. You may see drums, gearboxes, brakes, and cables arranged across the deck. Keep clear of moving components. Even when the crane appears idle, stored energy can remain. Experienced technicians check manufacturer instructions, maintenance records, and actual operating symptoms together. One clue is never enough.

The operator cab is normally positioned beside or above the machinery deck. From there, the operator controls lifting, trolley travel, and slewing movements. Inside, identify the control panels, load indicators, communication equipment, and visibility limits. A clean windshield helps, but it does not solve every blind spot. My early inspections focused too much on visible damage. That was a mistake. I now compare the cab’s instruments with the crane’s movement and site conditions. Labels can fade. Assumptions can fail. When any reading seems inconsistent, stop the inspection and request qualified technical support.

Jib, Trolley, and Load-Lifting Components

How to Identify the Main Parts of a Tower Crane?

A tower crane’s jib is the long horizontal arm extending from the slewing unit. It carries the trolley and distributes lifting forces across the crane’s working radius. Look for the trolley, a small wheeled carriage moving along the jib. Its position changes the load radius. A trolley near the tower usually handles heavier loads than one near the jib tip. The operator must check the load chart for every position.

The load-lifting system includes the hoist motor, wire rope, drums, sheaves, hook block, and safety latch. The wire rope travels through sheaves before reaching the hook block. This arrangement controls lifting speed and mechanical advantage. During a practical inspection, watch for broken rope wires, flattened sections, unusual drum winding, or damaged sheave grooves. Small defects matter. A loose hook latch can create serious risk.

The counter-jib sits behind the tower and supports the machinery, counterweights, and electrical equipment. It balances the working jib, but it does not make an unstable load safe. Experienced teams compare the actual load weight, radius, and lifting height with approved limits. Clear communication also matters when the load leaves the operator’s view. One imperfect habit deserves attention: people sometimes inspect the hook but overlook the trolley wheels and end stops. That narrow focus can hide a developing mechanical problem.

How to Identify the Main Parts of a Tower Crane? - Jib, Trolley, and Load-Lifting Components

Main Component How to Identify It Primary Function Typical Characteristics Important Inspection Points
Tower Mast The tall vertical structure made from bolted lattice sections. Supports the crane’s upper machinery and transfers loads to the foundation. Usually assembled from standardized steel sections; common section heights are approximately 1.5–3 m, depending on the crane design. Check bolts, welds, corrosion, deformation, vertical alignment, and connections between sections.
Jib The long horizontal or slightly inclined lattice boom extending from the slewing unit. Provides the working radius for moving loads across the construction area. Typical working lengths range from about 30–80 m; the rated capacity normally decreases as the radius increases. Inspect chords, diagonals, pins, connection plates, welds, and signs of bending or fatigue.
Trolley A wheeled carriage mounted on the underside or top chord of the horizontal jib. Moves the hoist and suspended load horizontally along the jib. Driven by a trolley motor, gearbox, and wire-rope system; travel speed is commonly adjustable for accurate positioning. Check wheels, axles, guards, drive components, travel limits, and correct rope reeving.
Hoist Mechanism The motor, drum, gearbox, brake, and controls normally located on the machinery deck. Raises and lowers the load through the hoist wire rope. Includes an electric motor and mechanical or electromechanical braking system; lifting speed may change with load and control settings. Inspect the brake, drum, gearbox, motor temperature, lubrication, abnormal noise, and emergency stopping function.
Hoist Wire Rope The steel rope running from the hoist drum through sheaves to the hook block. Carries the suspended load and transmits lifting force from the hoist drum. Common diameters are approximately 10–24 mm, but the correct size depends on the crane’s rated load and reeving arrangement. Look for broken wires, kinks, crushing, bird-caging, corrosion, diameter reduction, and poor lubrication.
Hook Block and Hook The assembly hanging at the free end of the hoist rope, usually containing sheaves and a load hook. Connects lifting accessories to the crane and distributes the rope load through the sheaves. May use single or multiple rope falls; multiple falls increase lifting capacity but reduce lifting speed. Inspect hook deformation, throat opening, latch operation, sheaves, pins, bearings, and identification markings.
Slewing Unit The rotating assembly between the tower top and the jib and counterjib. Allows the upper crane structure to rotate horizontally around the tower axis. Usually contains a slewing ring, drive motors, pinions, brakes, and rotation controls; rotation is generally 360 degrees. Check slewing-ring bolts, gear teeth, lubrication, backlash, abnormal vibration, and slew-limit devices.
Counterjib The shorter rear boom positioned opposite the main jib. Balances the jib and supports machinery, electrical equipment, and counterweights. Often approximately 25–40% of the main jib length, although the exact proportion varies by design. Inspect structural members, tie bars, connection pins, machinery supports, and counterweight restraints.
Counterweights Large concrete or steel blocks mounted on the counterjib. Counterbalances the overturning moment created by the jib and lifted load. The total mass is crane-specific and must match the manufacturer’s approved configuration and radius arrangement. Verify correct quantity, position, condition, locking devices, labels, and absence of cracking or displacement.
Foundation and Base The reinforced-concrete foundation, base frame, or anchoring system at ground level. Transfers vertical, horizontal, and overturning forces from the crane into the ground. May be a fixed foundation, travelling chassis, or climbing-frame arrangement, depending on the installation. Check anchor bolts, foundation cracks, drainage, settlement, frame level, and corrosion at the base connections.
Operator Cabin and Controls The enclosed or semi-enclosed cabin mounted near the upper rotating structure. Provides the operator with visibility and controls for hoisting, trolley travel, and slewing. Common controls include joysticks, displays, emergency stop, load indicators, and communication equipment. Check visibility, seat and access, control response, alarms, emergency stop, lighting, and communications.
Safety and Limit Devices Sensors, switches, indicators, and limiters installed throughout the crane. Prevent overload, over-hoisting, over-lowering, excessive trolley travel, and unsafe slewing. May include rated-capacity indicators, height limits, trolley limits, anti-collision systems, and wind-speed monitoring. Test each device according to the crane manual and applicable local regulations; never bypass safety systems.
Note: Dimensions, capacities, and configurations vary by crane model, installation height, jib length, reeving arrangement, and applicable regulations. Always use the approved load chart, assembly instructions, and inspection requirements for the specific crane.

Counterjib, Counterweights, and Safety Systems

How to Identify the Main Parts of a Tower Crane?

The counterjib extends behind the tower and balances the working jib. It carries the machinery, ropes, and counterweights. From ground level, look for the shorter rear arm and its stacked concrete blocks. Counterweights must match the approved configuration. Adding or removing one block can change crane stability. During inspections, I check for cracked surfaces, loose retaining pins, and damaged connection plates. These details are easy to miss in poor weather.

The counterjib also supports the hoist motor and cable drum. Listen for unusual vibration during operation. It may indicate misalignment or worn bearings. The International Labour Organization reports that construction remains one of the highest-risk industries worldwide. HSE’s 2023/24 fatal injury statistics recorded 51 worker deaths in Great Britain’s construction sector. These figures are not tower-crane specific, but they show why disciplined checks matter.

Safety systems include overload protection, trolley limit switches, emergency stops, anemometers, and anti-collision controls. Operators should confirm that alarms activate before lifting loads. Site teams must also inspect access ladders, platforms, guardrails, and grounding connections. OSHA’s crane standard requires documented procedures for assembly, disassembly, and safe operation. Do not trust appearance alone. A clean control panel can hide a failed sensor. I have seen checklists treated as paperwork, yet one unchecked limit switch can create a serious exposure. Some procedures still need better questioning.
